Automatic Bottom Gluing Machine
Description
LJ-600B Automatic bottom gluing machine is a highly efficient, practical, and new bottom gluing machine developed and improved by our company according to the market demand.
The machine adopts mechanical, optical, electrical and pneumatic integrated control. It is equipped with the computer-programmed PLC control system and servo drive. Operation is via the programmable touch screen. It has the features of simple operation, stable running, accurate size adjustment, reliable mechanical operation, low noise, and low failure rate.
The machine uses manual feeding and automatic paper conveying, which effectively reduces workers' labor intensity. The hot melt glue spraying machine automatically applies glue, automatically folds the edges and presses into shape. It is an ideal equipment for making handbags.

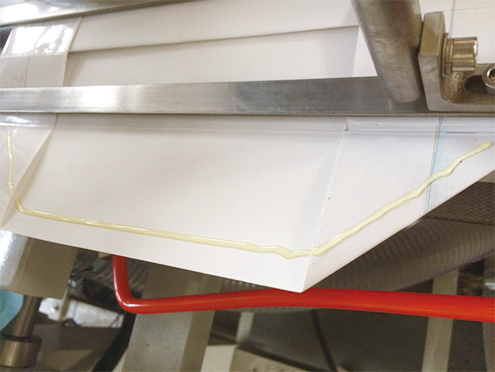

Glue track

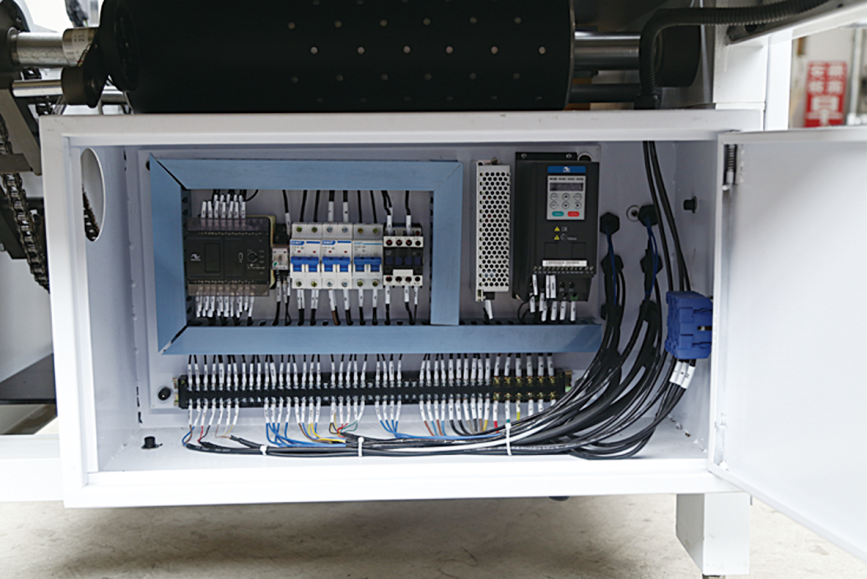

Electric part

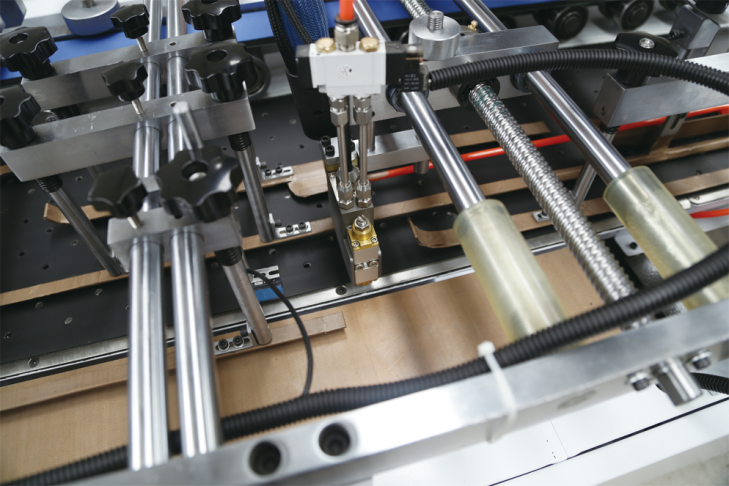

Glue spraying part
Technical parameters
Bag size |
600x600mm (max.) |
170x100mm (Min.) | |
Bottom gluing size |
40~200mm |
Bottom gluing speed |
60~100 pcs/min |
Glue type |
Hot melt glue |
Voltage |
380V 50Hz |
Dimensions |
7000x1300x1600mm |
Total power |
8kw |
Machine weight |
1.8T |
