Automatic Folder Gluer Machine
Description
Folding gluing machine is multifunction high speed machine,imported electronic components, adopt synchronous belt transmission and electronic continuously variable speeder, feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together.
Carton folder gluer machine 880/ 1100/1300 /1450
Description
| Model | XLHX-880PC | XLHX-1100AC | XLHX-1380AC | XLHX-1450AC |
| Sheet Thickness | Cardboard≥400g | Cardboard≥400g Corrugated≤8mm |
Cardboard≥400g Corrugated≤8mm |
Cardboard≥400g Corrugated≤8mm |
| Max.speed | 300m/min | 200m/min | 200m/min | 200m/min |
| Total power | 17KW | 21KW | 21KW | 21KW |
| Overall Dimension | 12500*1500*1350mm | 14600*1800*1500mm | 14600*2100*1500mm | 14600*2300*1500mm |
| Weight | 5T | 6.8T | 8.5T | 10.5T |
| Product Data | XLHX-880PC | XLHX-1100AC | XLHX-1380AC | XLHX-1450AC | |
 |

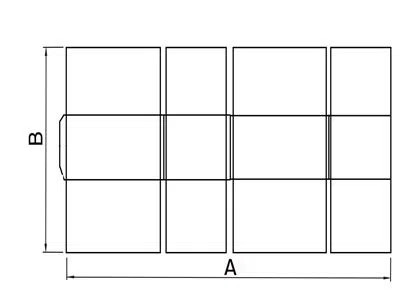

A mm B mm |
100-880 80-650 |
200-1100 100-540 |
400-1380 400-960 |
400-1450 400-1000 |
 |

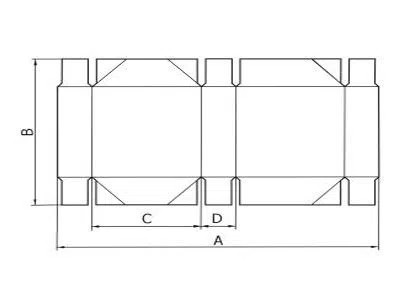

A mm B Max mm C Min mm D Min mm |
50-880 600 55 35 |
200-1080 980 90 35 |
400-1330 960 95 42 |
400-1400 400-1000 95 45 |
 |

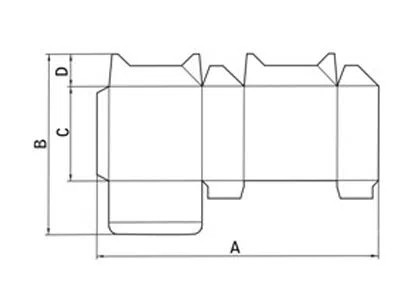

A Min mm B Min mm C Min mm D Min mm |
150 130 100 35 |
300 200 230 35 |
400 400 95 45 |
400 400 130 40 |
 |

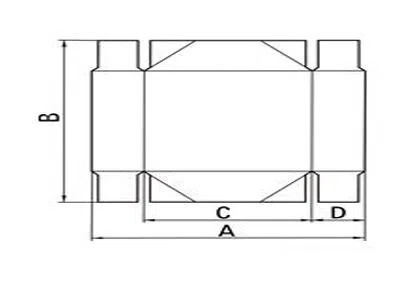

A Min mm B Min mm C Min mm D Min mm |
250 130 100 35 |
450 200 230 35 |
400 400 130 40 |
400 400 130 40 |
Folding Department: Folding 2 lines, 180 degree; 4 lines, 180 degree, folding stable and accurate.
Gluing Tube Part: It is equipped with the left and right pasting tube, all the components are pure copper and stainless steel, gluing stability and maintenance easy.
Crash Hook Bottom: It is equipped with the accurate Taiwan hook bottom mechanism, Operation simple and quick, the speed is 65-300 pcs for 1minute.
