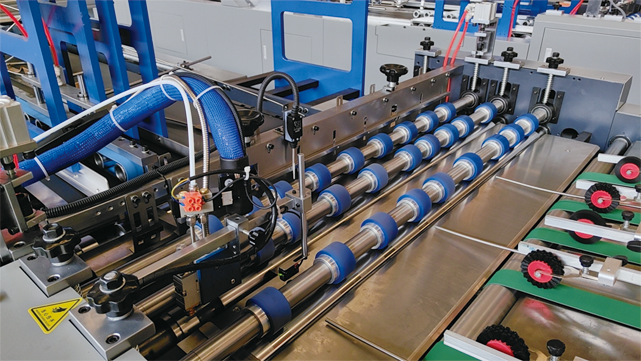

Folding unit

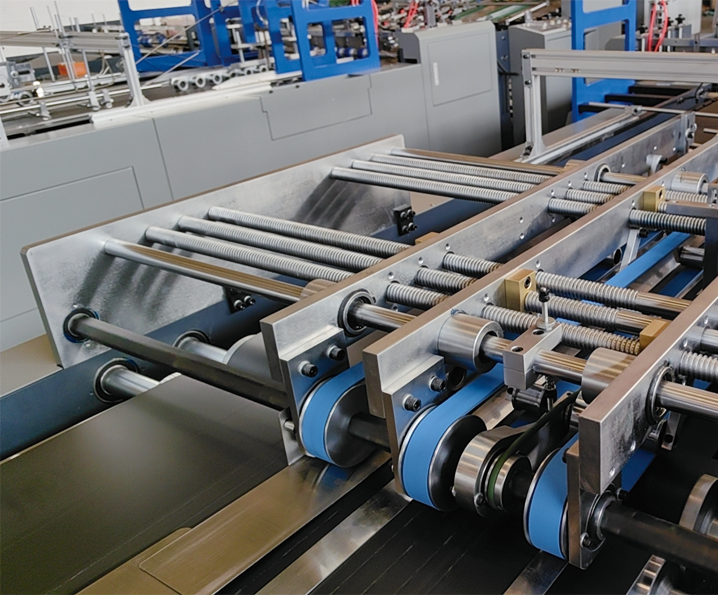

Folding unit
Pressing unit
Technical parameters
| Max.sheet size
|
1200x600mm
|
| Min. Sheet size
|
480x310mm
|
| Paper thickness
|
180~300g/㎡
|
| Paper bag tube length
|
290~600mm
|
| Speed
|
50~100 bags/min
|
| Top folding depth
|
50~180mm
|
| Gusset height
|
50~180mm
|
| Glue type
|
Hot melt glue
|
| Total power
|
14kw
|
| Machine weight
|
5.5T
|
| Voltage
|
380V 50Hz
|
| Dimensions | 12500x1950x1600mm |
The LJ-1200B Automatic Paper Bag Tube Gluing Machine is an efficient, practical, and new-type paper tube gluing machine developed and improved by our company according to to market demands.
This machine adopts an integrated control combination of mechanical, photoelectric, and pneumatic systems, equipped with the computer PLC programming control system and driven by precision servo motor. Human-machine interaction is achieved through the programmable touch screen.
The machine has the features of simple operation, stable running, accurate size control precision, safety and reliability, low noise and low failure rate.
