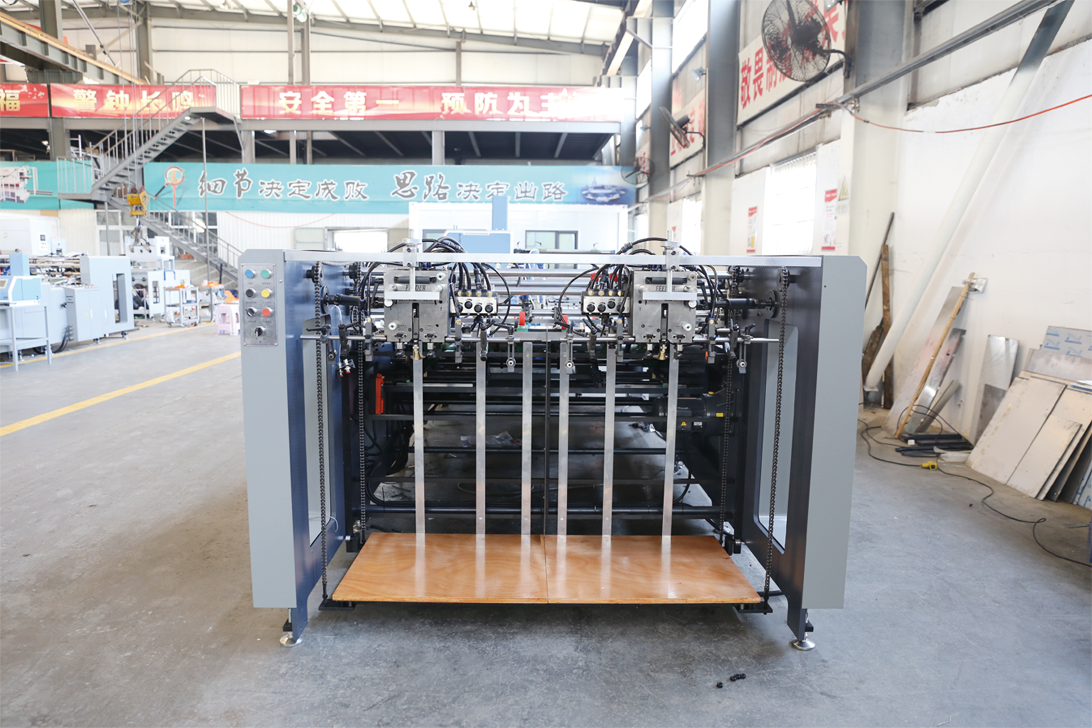

Double feeders feeding part
.

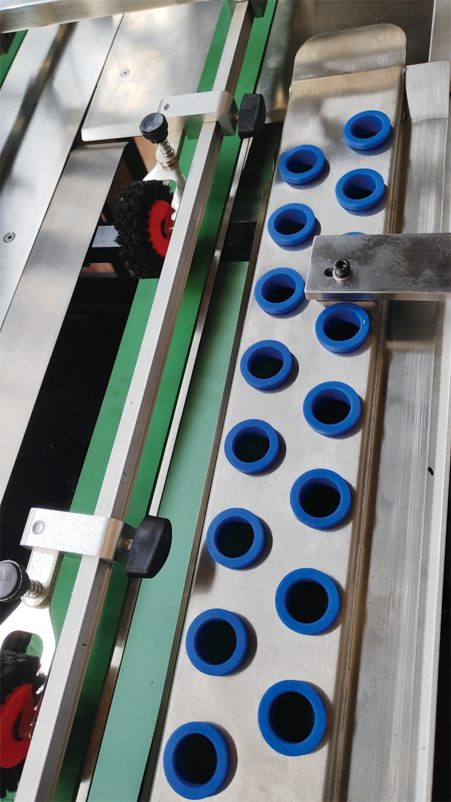

Side lay
Technical parameters
| Max.sheet size
|
750x600mm(single sheet)
|
| Min.sheet size
|
500x320mm(single sheet)
|
| Paper thickness
|
180~300g/ ㎡
|
| Splicing length
|
1000~1500mm
|
| Gluing speed
|
30~60/min
|
| Glue type
|
Hot melt glue
|
| Total power
Machine weight
|
13kw
5T
|
| Voltage
|
380V 50Hz
|
| Dimensions | 10300x2130x1600mm |
LSP-1500A Double-Splicing Paper Bag Tube Gluing Machine is a newly developed, highly efficient, practical and new-type double-sheet splicing paper bag tube gluing machine by our company according to market demands.
The machine uses double feeders to convey two sheets of paper for splicing to make paper bags, thus solving the problems of large paper bags that cannot be made due to various reasons, slow manual production and unstable quality. The machine adopts mechanical, optical, electrical and pneumatic integrated control. It is controlled by computer PLC programming, driven by servo motor, and is operated through an external programmable touch screen to realize human-machine interaction.
The machine has the features of simple operation, stable running, precise and reliable size control, low noise and low failure rate.
